Program helps in designing heating, water and sewage, gas, medical, fire safety, ventilation, air conditioning, refrigeration, technological and other installation types in both construction and industry. Intelligent insertion of symbols and objects, automatic drawing of installation views, creation of specifications and libraries of well-known manufacturers are only some of the advantages of the application.

CADprofi HVAC & Piping module can be bought separately or in full CADprofi Suite package, which contains all 4 CADprofi modules for 50% of the price.

Watch CADprofi HVAC & Piping introductory movie

Key features:

Click on feature to read more

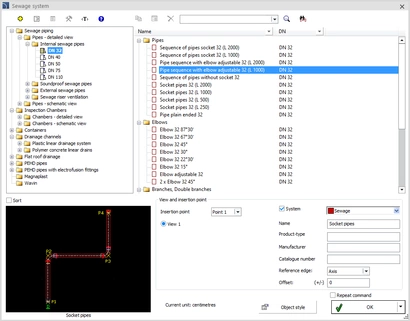

Pipes/ventilation ducts

Schematic lines

Manufacturer libraries

Air flow calculations

Smart symbols

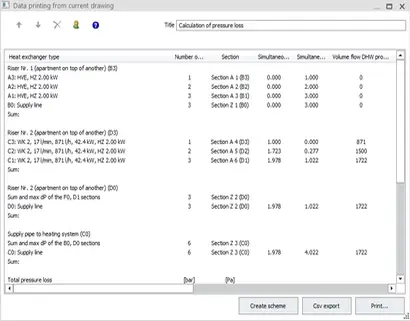

Hydraulic calculations

Parametrical armature

Predefined diagrams

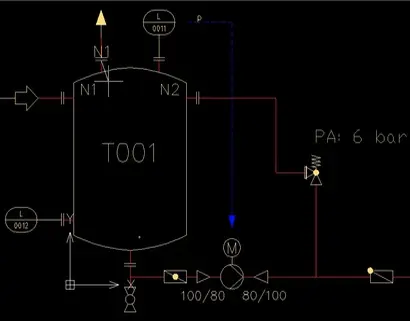

P&ID schemes

[iee_expanding_sections title=”Read more about other CADprofi HVAC & Piping key features” description=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” element_typography=”custom” typography_title=”Open Sans:700″ title_font_size=”16″ typography_description=”Open Sans:regular” description_font_size=”18″ heading_color=”#ffffff” hue=”” saturation=”” lightness=”” alpha=”” background_color_1=”#0077bb” background_color_2=”” gradient_direction=”0deg” background_color_content=”#ffffff”]

Multivariant symbols that allows for easy configuration of shut-off or regulation valves, actuators, connections, distributors, risers etc.
Quick edition of schemes with the possibility to use symbols inverting options (e.g. changing the overflow direction), symbols zooming, smart copying, changing symbols, deleting symbols from lines etc.
Visualization of type of lines which facilitates the appropriate project preparation.
Drawing isometry and dimetry with automatic conversion of standard symbols and user symbols into isometric view.
Possibility to draw installation sequences with offset and with the possibility to define the edge (center, left, right) which makes it easier to draw for example along walls or other installations.
Quick drawing of installation sequences along the indicated line (possibility to change lines into pipelines or ventilation).
Designing water connections.
Designing fire protection installations.
Measuring armature (water meters, gas meters, manometers, thermometers) with accessories.
Air distribution system (recuperation), air handling units, heat pumps and air conditioners (Daikin, Fujitsu, LG, PRO-Vent, Samsung, Toshiba, Mitsubishi Electric, Haier etc.).
Automatic connection of lines to objects and connection of ducts and pipes using a variety of connectors.
The Quick edit (QED) command that allows you to perform basic editing operations on symbols and objects, including edit, attributes and descriptions, mirror, scale, copy, rotate, delete, move, extend, insert an alternative view or automatically draw sequences of general and detailed pipes/ducts from objects.
Easy edition of installation views, including: installation insulation, dividing pipelines and ducts into segments, changing the cross-section of pipes and ducts, changing the dimension of fittings etc.
System of steel (welded, flanged and threaded), copper, plastic, pressed, sewage, PEX, PEHD, DIN 11 850, EN 10255 and other pipes and fittings in schematic, general and detailed views.
Steel chimney systems – detailed views.
Flat roof drainage systems and linear drainage systems.

Sewerage wells and water meter wells.
Tanks for rainwater and sanitary sewage as well as household sewage treatment plants.
Designing plumbing and heating installations (boilers, radiators, pipe systems, heat exchangers).
Creation of bill of materials/specifications, with the inclusion of specifications of ventilation installation prefabricated elements with the calculation of ducts and fittings area in accordance with the current standards.
Designing is done in accordance with designers habits and requirements.
Metric or imperial units available.
Tools for full description and projects detailing.
Automatic numbering of objects.
A system of quick search of products in the database.
Access to CAD libraries of many world known manufacturers.
Possibility to important and add to the program user’s own symbols or objects.
Automatic layer management and printing styles allows user to achieve prints with predefined line thickness, colours, etc.
Possibility to define the list of “favourites” that allows to work in accordance with user habits and preferences.
Possibility of adding your own translations or changing the terminology that is used in the program.
Smart insertion of objects with the possibility of attaching them to other objects by using the “one-click” technology.
Intelligent commands that allow for performing quick editing operations on symbols and objects directly in the drawing.
Possibility to create any diagrams, flowcharts, technological and functional schemes, algorithms.
Possibility to create bill of materials and specifications that can be either printed or exported to multiple formats including pdf, rtf (doc), xls, xml, csv, html and more.
Automatic creation of graphical legends.
On-line help with many illustrations and exemplary videos that explain in details how to use the program.
On-line update system.
